| Brand Name : | JZHY |
| Model Number : | JZ-518 |
| Certification : | CE / ISO |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 100 sets per Month |
| Delivery Time : | 7-10 Days |

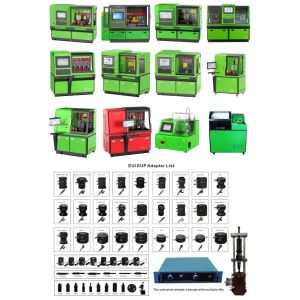

JZ-518 Multifunctional Function Common Rail Pump EUI EUP Injector Code BPI Test Bench
Standard Functions:
Optional Functions:
| Technical Parameters | |||||||
| Model Number | JZ-518 | ||||||
| Color | Green/Red | ||||||
| Frequency | 50Hz / 60Hz | ||||||
| Motor Height | 125 MM | ||||||
| Main Output | 15 KW | ||||||
| Speed | 0～3500 RPM | ||||||
| Speed Control Mode | Frequency Converter | ||||||
| Diesel Motor Output | 5.5 KW | ||||||
| Diesel Oil Supply Output | 0.75 KW | ||||||
| Oil Tank Cooling Output | 105 Watts | ||||||
| Power | 380V AC 3-Phase-4-Wire | ||||||
| Cooling Systerm | Air Conditioning (1P) | ||||||
| Diesel Tank Volume | 40L Filtration Accuracy:3μm | ||||||
| Fuel Temperature | 40℃ ± 2℃ | ||||||
| Heating System | Air Conditioning | ||||||
| Nozzel / Pump Flow Sensor | Gear Flow Sensor | ||||||
| Flow Metering Unit | 0.008～2L /min | ||||||
| Control Return Voltage | DC 12V / DC 24V | ||||||
| Max Common Rail Pressure | 0-2700 Bar | ||||||
| Rail Pressure Testing Accuracy | ±5 Bar | ||||||
| Diesel Oil Supply Pressure | 0～2.5 Mpa | ||||||
| Injection Frequency | 400-6000 n/M | ||||||
| Pulse Width | 100-3000 μs | ||||||
| Machine Dimension | 1880*1020*1750MM | ||||||
| Packing Dimension | 1980*1160*1930MM | ||||||
| Net Weight | 609KG | ||||||
| Gross Weight | 684KG | ||||||
|
|
